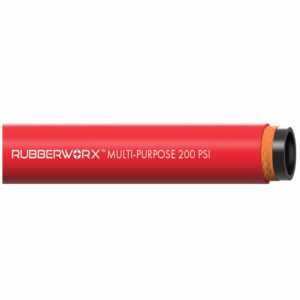

This economy multipurpose hose designed for use in industrial, agricultural, and commercial applications for the transfer of air, water, and light chemicals. The durable EPDM tube and cover stand up to a high range of temperature changes and remains extremely flexible.
Tube: Black EPDM
Reinforcement: TEXTILE
Temperature: -40°F to 210°F
|
Part Number
|
ID (in)
|
OD (in)
|
Tube Thickness
|
Pressure (psi)
|
Burst Ration (safety factor)
|
Vacuum Rating
|
Bend Radius
|
Braid Coverage
|
Pitch (in)
|
Weight (oz/yd)
|
Length (ft)
| Reset filters | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M001101-025 | 0.25 | 0.53 | NA | 200 | 4:1 | NA | NA | NA | NA | NA | NA | M001101-025 |
| ||
| M001101-031 | 0.31 | 0.58 | NA | 200 | 4:1 | NA | NA | NA | NA | NA | NA | M001101-031 |
| ||
| M001101-038 | 0.38 | 0.67 | NA | 200 | 4:1 | NA | NA | NA | NA | NA | NA | M001101-038 |
| ||
| M001101-050 | 0.5 | 0.81 | NA | 200 | 4:1 | NA | NA | NA | NA | NA | NA | M001101-050 |
| ||
| M001101-062 | 0.62 | 0.97 | NA | 200 | 4:1 | NA | NA | NA | NA | NA | NA | M001101-062 |
| ||
| M001101-075 | 0.75 | 1.12 | NA | 200 | 4:1 | NA | NA | NA | NA | NA | NA | M001101-075 |
| ||
| M001101-100 | 1 | 1.44 | NA | 200 | 4:1 | NA | NA | NA | NA | NA | NA | M001101-100 |
| ||
| M001101-125 | 1.25 | 1.73 | NA | 200 | 4:1 | NA | NA | NA | NA | NA | NA | M001101-125 |
| ||
| M001101-150 | 1.5 | 1.98 | NA | 200 | 4:1 | NA | NA | NA | NA | NA | NA | M001101-150 |
| ||
| M001101-200 | 2 | 2.5 | NA | 200 | 4:1 | NA | NA | NA | NA | NA | NA | M001101-200 |
|
