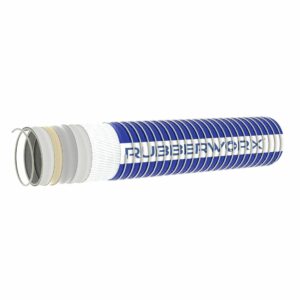

This heavy-duty suction and discharge composite hose is designed for use in general chemical transfer applications. The flexible design is perfect for tank farms,midstream pumping locations, loading stations,and loading arm hoses. In applications where bend radius and weight are an issue with rubber, chemical composite is the perfect solution.
Tube: Natural polypropylene
Reinforcement: POLYFIBER
Inner Helix: Galvanized
Outer Helix: Poly Coated Steel
Temperature: -40°F to 212°F
|
Part Number
|
ID (in)
|
OD (in)
|
Tube Thickness
|
Pressure (psi)
|
Burst Ration (safety factor)
|
Vacuum Rating
|
Bend Radius
|
Braid Coverage
|
Pitch (in)
|
Weight (oz/yd)
|
Length (ft)
| Reset filters | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 8C01205-100 | 1 | 1.12 | NA | 250 | 4:1 | 29 | 6 | NA | NA | NA | NA | 8C01205-100 |
| ||
| 8C01205-1000 | 10 | 11.5 | NA | 250 | 4:1 | 29 | 40 | NA | NA | NA | NA | 8C01205-1000 |
| ||
| 8C01205-1200 | 12 | 13 | NA | 250 | 4:1 | 29 | 47 | NA | NA | NA | NA | 8C01205-1200 |
| ||
| 8C01205-150 | 1.5 | 1.68 | NA | 250 | 4:1 | 29 | 8 | NA | NA | NA | NA | 8C01205-150 |
| ||
| 8C01205-200 | 2 | 2.24 | NA | 250 | 4:1 | 29 | 6 | NA | NA | NA | NA | 8C01205-200 |
| ||
| 8C01205-300 | 3 | 3.36 | NA | 250 | 4:1 | 29 | 8 | NA | NA | NA | NA | 8C01205-300 |
| ||
| 8C01205-400 | 4 | 4.4 | NA | 250 | 4:1 | 29 | 14.2 | NA | NA | NA | NA | 8C01205-400 |
| ||
| 8C01205-600 | 6 | 6.75 | NA | 250 | 4:1 | 29 | 22 | NA | NA | NA | NA | 8C01205-600 |
| ||
| 8C01205-800 | 8 | 9 | NA | 250 | 4:1 | 29 | 30 | NA | NA | NA | NA | 8C01205-800 |
|
