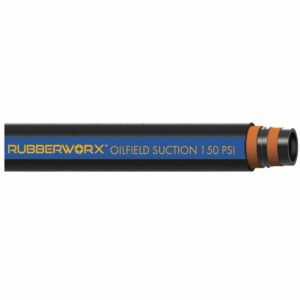

This heavy-duty oilfield suction and discharge hose is designed for use with unrefined oils, drilling mud, well water, sewage, salt water, and refined fuels. For use in oilfield service for tank trucks, oilfield transfer and pumping applications.
Tube: Black SBR Blend
Reinforcement: TEXTILE
Helix: STEEL
Temperature: -22°F to 180°F
|
Part Number
|
ID (in)
|
OD (in)
|
Tube Thickness
|
Pressure (psi)
|
Burst Ration (safety factor)
|
Vacuum Rating
|
Bend Radius
|
Braid Coverage
|
Pitch (in)
|
Weight (oz/yd)
|
Length (ft)
| Reset filters | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6001103-100 | 1 | 1.5 | NA | 150 | 3:1 | 29 | 2 | NA | NA | NA | NA | 6001103-100 |
| ||
| 6001103-200 | 2 | 2.5 | NA | 150 | 3:1 | 29 | 4 | NA | NA | NA | NA | 6001103-200 |
| ||
| 6001103-300 | 3 | 3.56 | NA | 150 | 3:1 | 29 | 6 | NA | NA | NA | NA | 6001103-300 |
| ||
| 6001103-400 | 4 | 4.57 | NA | 150 | 3:1 | 29 | 10 | NA | NA | NA | NA | 6001103-400 |
| ||
| 6001103-600-20 | 6 | 6.73 | NA | 150 | 3:1 | 29 | 16 | NA | NA | NA | NA | 6001103-600-20 |
| ||
| 6001103-800-20 | 8 | 8.94 | NA | 150 | 3:1 | 29 | 26 | NA | NA | NA | NA | 6001103-800-20 |
|
