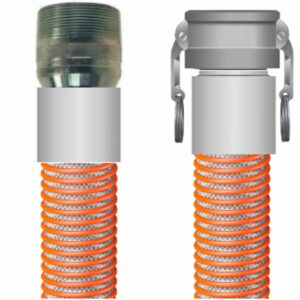

This medium-duty water suction and discharge hose is designed for use in construction, dewatering, agricultural and industrial applications. PVC tube reinforced with a synthetic textile braid and orange PVC helix. PVC tube is designed to handle residual chemicals in water transfer applications.
Tube: Clear PVC
Reinforcement: TEXTILE
Helix: ORANGE PVC
Temperature: -13°F to 140°F
|
Part Number
|
ID (in)
|
OD (in)
|
Tube Thickness
|
Pressure (psi)
|
Burst Ration (safety factor)
|
Vacuum Rating
|
Bend Radius
|
Braid Coverage
|
Pitch (in)
|
Weight (oz/yd)
|
Length (ft)
| Reset filters | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1001-200-0240-AL-CXMP | 2 | 2.6 | NA | 100 | 3:1 | 28 | 4 | NA | NA | NA | NA | 1001-200-0240-AL-CXMP |
| ||
| 1001-300-0240-AL-CXMP | 3 | 3.62 | NA | 100 | 3:1 | 28 | 6 | NA | NA | NA | NA | 1001-300-0240-AL-CXMP |
| ||
| 1001-400-0240-AL-CXMP | 4 | 4.8 | NA | 75 | 3:1 | 28 | 7 | NA | NA | NA | NA | 1001-400-0240-AL-CXMP |
| ||
| 1001-600-0240-AL-CXMP | 6 | 7.17 | NA | 70 | 3:1 | 28 | 10 | NA | NA | NA | NA | 1001-600-0240-AL-CXMP |
| ||
| 1001-800-0240-AL-CXMP | 8 | 9.34 | NA | 70 | 3:1 | 28 | 16 | NA | NA | NA | NA | 1001-800-0240-AL-CXMP |
|
