Chemical Composite Hose

Q: What sizes are available for Rubberworx™ Composite Chemical Transfer hoses?

Rubberworx™ Composite Chemical Transfer hoses come in various sizes to meet specific industrial requirements. These sizes range from 1 inch up to 6 inches and can be customized according to your application needs. The different size options for these hoses ensure maximum efficiency and flexibility in terms of fluid transfer.

Q: What is the temperature range for Rubberworx™ Composite Chemical Transfer hoses?

Rubberworx™ Composite Chemical Transfer Hoses have an impressive temperature range suitable for use in extreme environments. They can withstand temperatures ranging from -40°F to 250°F (-40°C to 121°C). This makes them ideal for use in hot or cold climates without any impact on their performance.

Q: What industries can benefit from Rubberworx™ Composite Chemical Transfer hoses?

Rubberworx™ Composite Chemical Transfer hoses are ideal for a wide range of industries that require safe and efficient transfer of industrial chemicals. Some of the industries that can benefit from these hoses include oil and gas, petrochemicals, pharmaceuticals, food and beverage processing, construction, agriculture, and many more. With their superior chemical resistance properties, these hoses provide a reliable solution for transferring hazardous materials safely.

Q: How do I choose the right Rubberworx™ Composite Chemical Transfer hose construction type?

Choosing the right Rubberworx™ Composite Chemical Transfer hose construction type depends on several factors such as chemical compatibility with hose material, operating pressure and temperature requirements, weight limitations, flexibility needs among others. Our experts are always available to help you select the right construction type based on your application needs. Contact us today for assistance in selecting the perfect Rubberworx™ Composite Chemical Transfer hose that will meet your specific requirements.

Q: What is the chemical resistance of Rubberworx™ Composite Chemical Transfer hoses?

Rubberworx™ Composite Chemical Transfer hoses have superior chemical resistance to a wide range of industrial chemicals. They are constructed using high-quality materials that offer exceptional protection against harsh chemicals and corrosive substances. The heavy composite constructions of these hoses make them suitable for use in demanding applications, ensuring reliable performance even in extreme environments.

Rubberworx™ Composite Chemical Transfer hoses to meet the most rigorous applications for a wide range of industrial chemicals. Heavy composite constructions that will meet your requirements for weight, durability, or flexibility.

8C01205 NATURAL

8C01205-100 Chemical Transfer Composite Hose - 1" ID, 250 PSI, -40°F to 212°F, Natural Polypropylene Tube, Polyfiber Reinforcement, Galvanized Inner Helix, Poly Coated Steel Outer Helix

This heavy-duty suction and discharge composite hose is designed for use in general chemical transfer applications. The flexible design is perfect for tank farms,midstream pumping locations, loading stations,and loading arm hoses. In applications where bend radius and weight are an issue with rubber, chemical composite is the perfect solution.

Part Number	ID (in)	OD (in)	Bend Radius	lbs/ft
8C01205-100	1	1.12	6	1.60
8C01205-150	1.5	1.68	8	14.50
8C01205-200	2	2.24	6	16.75
8C01205-300	3	3.36	8	2.40
8C01205-400	4	4.4	14.2	1.60
8C01205-600	6	6.75	22	2.40
8C01205-800	8	9	30	3.20
8C01205-1000	10	11.5	40	7.20
8C01205-1200	12	13	47	11.00

See more See less

8C02205 NATURAL

Heavy-Duty Suction and Discharge Composite Hose for Chemical Transfer - 8C02205-100 - Natural PP Tube - POLYFIBER Reinforcement - Stainless Inner Helix - Poly Coated Steel Outer Helix - 1" ID - 1.12" OD - 250 psi

Part Number	ID (in)	OD (in)	Bend Radius	lbs/ft
8C02205-100	1	1.12	6	1.60
8C02205-150	1.5	1.68	8	14.50
8C02205-200	2	2.24	6	16.75
8C02205-300	3	3.36	8	2.40
8C02205-400	4	4.4	14.2	1.60
8C02205-600	6	6.75	22	2.40
8C02205-800	8	9	30	3.20
8C02205-1000	10	11.5	40	7.20
8C02205-1200	12	13	47	11.00

See more See less

8C03205 NATURAL

Chemical Transfer Composite Hose - Heavy Duty Suction & Discharge - Natural Polypropylene Tube - POLYFIBER Reinforcement - 1" x 1.12" - 250 PSI

Part Number	ID (in)	OD (in)	Bend Radius	lbs/ft
8C03205-100	1	1.12	6	1.60
8C03205-150	1.5	1.68	8	2.40
8C03205-200	2	2.24	6	1.60
8C03205-300	3	3.36	8	2.40
8C03205-400	4	4.4	14.2	3.20

See more See less

8C08205 WHITE

Chemical Transfer Composite Hose - High Temp, Heavy-Duty, Flexible Design, White PTFE Tube, Stainless Steel Reinforcement - 1" ID x 1.12" OD, 250 PSI

This heavy-duty high temp suction and discharge composite hose is designed for use in chemical transfer applications. The flexible design is perfect for tank farms,midstream pumping locations, loading stations,and loading arm hoses. In applications where bend radius and weight are an issue with rubber, chemical composite is the perfect solution.

Part Number	ID (in)	OD (in)	Bend Radius	lbs/ft
8C08205-100	1	1.12	6	1.60
8C08205-150	1.5	1.68	8	14.50
8C08205-200	2	2.24	6	16.75
8C08205-300	3	3.36	8	2.40
8C08205-400	4	4.4	14.2	1.60
8C08205-600	6	6.75	22	2.40
8C08205-800	8	9	30	3.20
8C08205-1000	10	11.5	40	7.20
8C08205-1200	12	13	47	11.00

See more See less

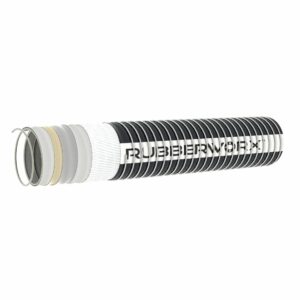

8C09205 WHITE

Chemical Transfer Composite Hose | Heavy-Duty High Temp Suction & Discharge Hose | 8C09205-100 | 1" Inner Diameter | -40°F to 350°F Temperature Range | 250 PSI Max Pressure | White PTFE Tube | POLYFIBER Reinforcement | Stainless Steel Helix

Part Number	ID (in)	OD (in)	Bend Radius	lbs/ft
8C09205-100	1	1.12	6	1.60
8C09205-150	1.5	1.68	8	14.50
8C09205-200	2	2.24	6	16.75
8C09205-300	3	3.36	8	2.40
8C09205-400	4	4.4	14.2	1.60
8C09205-600	6	6.75	22	2.40
8C09205-800	8	9	30	3.20
8C09205-1000	10	11.5	40	7.20
8C09205-1200	12	13	47	11.00
