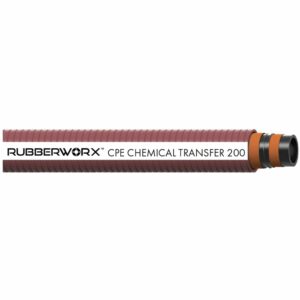

Rubberworx™ CPE Chemical Transfer hoses to meet the most rigorous applications for a wide range of industrial chemicals. CPE Chemical hose is designed for high heat applications in chemical transfer. Heavy duty rubber constructions that will meet your requirements for weight, durability, or flexibility.
|
Category
|
Part Number
|
ID (in)
|
OD (in)
|
Tube Thickness
|
Pressure (psi)
|
Burst Ration (safety factor)
|
Vacuum Rating
|
Bend Radius
|
Braid Coverage
|
Pitch (in)
|
Weight (oz/yd)
|
Length (ft)
| Reset filters | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 8005203 | 8005203-075 | 0.75 | 1.26 | NA | 200 | 3:1 | 29 | 4 | NA | NA | NA | NA | 8005203-075 |
| ||
| 8005203 | 8005203-100 | 1 | 1.52 | NA | 200 | 3:1 | 29 | 5 | NA | NA | NA | NA | 8005203-100 |
| ||
| 8005203 | 8005203-125 | 1.25 | 1.85 | NA | 200 | 3:1 | 29 | 6 | NA | NA | NA | NA | 8005203-125 |
| ||
| 8005203 | 8005203-150 | 1.5 | 2.17 | NA | 200 | 3:1 | 29 | 8 | NA | NA | NA | NA | 8005203-150 |
| ||
| 8005203 | 8005203-200 | 2 | 2.64 | NA | 200 | 3:1 | 29 | 12 | NA | NA | NA | NA | 8005203-200 |
| ||
| 8005203 | 8005203-250 | 3 | 3.7 | NA | 150 | 3:1 | 29 | 18 | NA | NA | NA | NA | 8005203-250 |
| ||
| 8005203 | 8005203-300 | 3 | 3.7 | NA | 150 | 3:1 | 29 | 22 | NA | NA | NA | NA | 8005203-300 |
| ||
| 8005203 | 8005203-400 | 4 | 4.89 | NA | 150 | 3:1 | 29 | 26 | NA | NA | NA | NA | 8005203-400 |
| ||
| 8005203 | 8005203-600 | 6 | 6.8 | NA | 150 | 3:1 | 29 | 34 | NA | NA | NA | NA | 8005203-600 |
|
