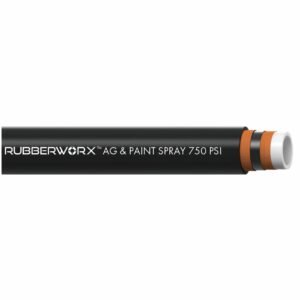

Nylon lined medium pressure spray hose built to handle chemicals used in agricultural and paint spray applications. Textile braiding design prevents kinking and oil resistant cover extends the service life. Nylon tube air, oil, water, lacquers, solvents, chemicals, paints and thinners.
Tube: Natural Nylon
Reinforcement: TEXTILE
Temperature: -0°F to 190°F
|
Part Number
|
ID (in)
|
OD (in)
|
Tube Thickness
|
Pressure (psi)
|
Burst Ration (safety factor)
|
Vacuum Rating
|
Bend Radius
|
Braid Coverage
|
Pitch (in)
|
Weight (oz/yd)
|
Length (ft)
| Reset filters | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 8007101-025 | 0.25 | 0.49 | NA | 750 | 4:1 | NA | NA | NA | NA | NA | NA | 8007101-025 |
| ||
| 8007101-031 | 0.31 | 0.61 | NA | 750 | 4:1 | NA | NA | NA | NA | NA | NA | 8007101-031 |
| ||
| 8007101-038 | 0.38 | 0.7 | NA | 750 | 4:1 | NA | NA | NA | NA | NA | NA | 8007101-038 |
| ||
| 8007101-050 | 0.5 | 0.87 | NA | 750 | 4:1 | NA | NA | NA | NA | NA | NA | 8007101-050 |
| ||
| 8007101-063 | 0.63 | 1.05 | NA | 750 | 4:1 | NA | NA | NA | NA | NA | NA | 8007101-063 |
| ||
| 8007101-075 | 0.75 | 1.19 | NA | 750 | 4:1 | NA | NA | NA | NA | NA | NA | 8007101-075 |
| ||
| 8007101-100 | 1 | 1.51 | NA | 750 | 4:1 | NA | NA | NA | NA | NA | NA | 8007101-100 |
|
