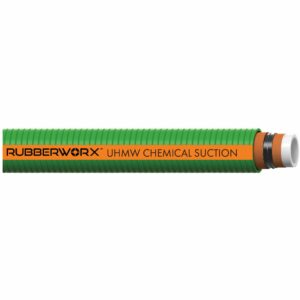

This heavy-duty chemical suction and discharge hose is designed for use in a wide variety of chemicals in agricultural and industrial applications. UHMW tube handles a wide variety of chemicals and meets FDA standards for food service. Corrugated cover design for improved flexibility.
Tube: Natural UHMW-PE
Reinforcement: TEXTILE
Helix: STEEL
Temperature: -40°F to 250°F
|
Part Number
|
ID (in)
|
OD (in)
|
Tube Thickness
|
Pressure (psi)
|
Burst Ration (safety factor)
|
Vacuum Rating
|
Bend Radius
|
Braid Coverage
|
Pitch (in)
|
Weight (oz/yd)
|
Length (ft)
| Reset filters | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 8006203-075 | 0.75 | 1.18 | NA | 250 | 3:1 | 29 | 4 | NA | NA | NA | NA | 8006203-075 |
| ||
| 8006203-100 | 1 | 1.46 | NA | 250 | 3:1 | 29 | 5 | NA | NA | NA | NA | 8006203-100 |
| ||
| 8006203-150 | 1.5 | 2.09 | NA | 250 | 3:1 | 29 | 8 | NA | NA | NA | NA | 8006203-150 |
| ||
| 8006203-200 | 2 | 2.64 | NA | 250 | 3:1 | 29 | 12 | NA | NA | NA | NA | 8006203-200 |
| ||
| 8006203-300 | 3 | 3.66 | NA | 250 | 3:1 | 29 | 22 | NA | NA | NA | NA | 8006203-300 |
| ||
| 8006203-400 | 4 | 4.72 | NA | 250 | 3:1 | 29 | 26 | NA | NA | NA | NA | 8006203-400 |
| ||
| 8006203-600 | 6 | 6.93 | NA | 250 | 3:1 | 29 | 34 | NA | NA | NA | NA | 8006203-600 |
|
