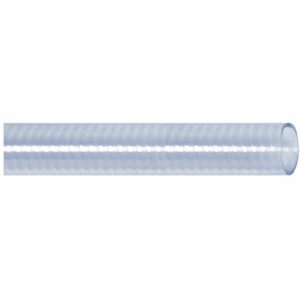

Heavy duty suction and discharge hose with an FDA PVC tube and cover with a static grounding wire along side a PVC helix. Designed for use with abrasives, water, light chemicals, powders, pellets and aqueous solutions. Corrugated cover design for improved flexibility.
Tube: PVC
Helix: Clear PVC
Temperature: -10°F to 140°F
|
Part Number
|
ID (in)
|
OD (in)
|
Tube Thickness
|
Pressure (psi)
|
Burst Ration (safety factor)
|
Vacuum Rating
|
Bend Radius
|
Braid Coverage
|
Pitch (in)
|
Weight (oz/yd)
|
Length (ft)
| Reset filters | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| F017106-075 | 0.75 | 1 | NA | 90 | 3:1 | 29 | 3 | NA | NA | NA | NA | F017106-075 |
| ||
| F017106-100 | 1 | 1.25 | NA | 90 | 3:1 | 29 | 3 | NA | NA | NA | NA | F017106-100 |
| ||
| F017106-125 | 1.25 | 1.58 | NA | 75 | 3:1 | 29 | 4 | NA | NA | NA | NA | F017106-125 |
| ||
| F017106-150 | 1.5 | 1.81 | NA | 75 | 3:1 | 29 | 6 | NA | NA | NA | NA | F017106-150 |
| ||
| F017106-200 | 2 | 2.4 | NA | 75 | 3:1 | 29 | 8 | NA | NA | NA | NA | F017106-200 |
| ||
| F017106-250 | 2.5 | 2.95 | NA | 75 | 3:1 | 29 | 10 | NA | NA | NA | NA | F017106-250 |
| ||
| F017106-300 | 3 | 3.52 | NA | 60 | 3:1 | 29 | 12 | NA | NA | NA | NA | F017106-300 |
| ||
| F017106-400 | 4 | 4.55 | NA | 55 | 3:1 | 29 | 15 | NA | NA | NA | NA | F017106-400 |
| ||
| F017106-500 | 5 | 5.75 | NA | 35 | 3:1 | 29 | 22 | NA | NA | NA | NA | F017106-500 |
| ||
| F017106-600 | 6 | 6.68 | NA | 35 | 3:1 | 29 | 25 | NA | NA | NA | NA | F017106-600 |
|
