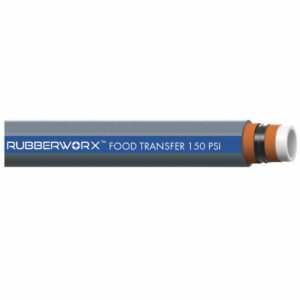

This heavy-duty food suction and discharge hose is designed for use in food service applications where oil resistance is required. White Nitrile tube meets FDA requirement for the transfer of oil and water based food products.
Tube: White Nitrile/PVC Blend FDA
Reinforcement: TEXTILE
Helix: STEEL
Temperature: -25°F to 212°F
|
Part Number
|
ID (in)
|
OD (in)
|
Tube Thickness
|
Pressure (psi)
|
Burst Ration (safety factor)
|
Vacuum Rating
|
Bend Radius
|
Braid Coverage
|
Pitch (in)
|
Weight (oz/yd)
|
Length (ft)
| Reset filters | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| F001103-150 | 1.5 | 1.92 | NA | 150 | 4:1 | 29 | 5 | NA | NA | NA | NA | F001103-150 |
| ||
| F001103-200 | 2 | 2.44 | NA | 150 | 4:1 | 29 | 6 | NA | NA | NA | NA | F001103-200 |
| ||
| F001103-250 | 2.5 | 3 | NA | 150 | 4:1 | 29 | 8 | NA | NA | NA | NA | F001103-250 |
| ||
| F001103-300 | 3 | 3.51 | NA | 150 | 4:1 | 29 | 10 | NA | NA | NA | NA | F001103-300 |
| ||
| F001103-400 | 4 | 4.55 | NA | 150 | 4:1 | 29 | 12 | NA | NA | NA | NA | F001103-400 |
|
