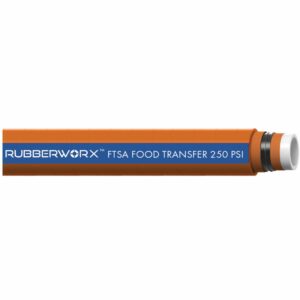

Rubberworx™ TSC Food & Beverage hoses are built on chrome mandels and Certified 3-A meet the hightest to meet the most rigorous applications for a wide wet and dry food transfer applications. 3A and FDA rubber construction of hoses that will meet your requirements for weight, durability, or flexibility.
|
Category
|
Part Number
|
ID (in)
|
OD (in)
|
Tube Thickness
|
Pressure (psi)
|
Burst Ration (safety factor)
|
Vacuum Rating
|
Bend Radius
|
Braid Coverage
|
Pitch (in)
|
Weight (oz/yd)
|
Length (ft)
| Reset filters | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FTSA103 | FTSA103-075 | 0.75 | 1.15 | NA | 150 | 3:1 | 29 | 2 | NA | NA | NA | NA | FTSA103-075 |
| ||
| FTSA103 | FTSA103-100 | 1 | 1.45 | NA | 150 | 3:1 | 29 | 3 | NA | NA | NA | NA | FTSA103-100 |
| ||
| FTSA103 | FTSA103-125 | 1.25 | 1.69 | NA | 150 | 3:1 | 29 | 4 | NA | NA | NA | NA | FTSA103-125 |
| ||
| FTSA103 | FTSA103-150 | 1.5 | 1.98 | NA | 150 | 3:1 | 29 | 4 | NA | NA | NA | NA | FTSA103-150 |
| ||
| FTSA103 | FTSA103-200 | 2 | 2.48 | NA | 150 | 3:1 | 29 | 5 | NA | NA | NA | NA | FTSA103-200 |
| ||
| FTSA103 | FTSA103-250 | 2.5 | 3.02 | NA | 150 | 3:1 | 29 | 6 | NA | NA | NA | NA | FTSA103-250 |
| ||
| FTSA103 | FTSA103-300 | 3 | 3.54 | NA | 150 | 3:1 | 29 | 7 | NA | NA | NA | NA | FTSA103-300 |
| ||
| FTSA103 | FTSA103-400 | 4 | 4.56 | NA | 150 | 3:1 | 29 | 10 | NA | NA | NA | NA | FTSA103-400 |
| ||
| FTSB103 | FTSB103-075 | 0.75 | 1.15 | NA | 250 | 4:1 | 29 | 2 | NA | NA | NA | NA | FTSB103-075 |
| ||
| FTSB103 | FTSB103-100 | 1 | 1.45 | NA | 250 | 4:1 | 29 | 3 | NA | NA | NA | NA | FTSB103-100 |
| ||
| FTSB103 | FTSB103-125 | 1.25 | 1.69 | NA | 250 | 4:1 | 29 | 4 | NA | NA | NA | NA | FTSB103-125 |
| ||
| FTSB103 | FTSB103-150 | 1.5 | 1.98 | NA | 250 | 4:1 | 29 | 4 | NA | NA | NA | NA | FTSB103-150 |
| ||
| FTSB103 | FTSB103-200 | 2 | 2.48 | NA | 250 | 4:1 | 29 | 5 | NA | NA | NA | NA | FTSB103-200 |
| ||
| FTSB103 | FTSB103-250 | 2.5 | 3.02 | NA | 250 | 4:1 | 29 | 6 | NA | NA | NA | NA | FTSB103-250 |
| ||
| FTSB103 | FTSB103-300 | 3 | 3.54 | NA | 250 | 4:1 | 29 | 7 | NA | NA | NA | NA | FTSB103-300 |
| ||
| FTSB103 | FTSB103-400 | 4 | 4.56 | NA | 250 | 4:1 | 29 | 10 | NA | NA | NA | NA | FTSB103-400 |
| ||
| FTSC103 | FTSC103-075 | 0.75 | 1.15 | NA | 250 | 4:1 | 29 | 2 | NA | NA | NA | NA | FTSC103-075 |
| ||
| FTSC103 | FTSC103-100 | 1 | 1.45 | NA | 250 | 4:1 | 29 | 3 | NA | NA | NA | NA | FTSC103-100 |
| ||
| FTSC103 | FTSC103-125 | 1.25 | 1.69 | NA | 250 | 4:1 | 29 | 4 | NA | NA | NA | NA | FTSC103-125 |
| ||
| FTSC103 | FTSC103-150 | 1.5 | 1.98 | NA | 250 | 4:1 | 29 | 4 | NA | NA | NA | NA | FTSC103-150 |
| ||
| FTSC103 | FTSC103-200 | 2 | 2.48 | NA | 250 | 4:1 | 29 | 5 | NA | NA | NA | NA | FTSC103-200 |
| ||
| FTSC103 | FTSC103-250 | 2.5 | 3.02 | NA | 250 | 4:1 | 29 | 6 | NA | NA | NA | NA | FTSC103-250 |
| ||
| FTSC103 | FTSC103-300 | 3 | 3.54 | NA | 250 | 4:1 | 29 | 7 | NA | NA | NA | NA | FTSC103-300 |
| ||
| FTSC103 | FTSC103-400 | 4 | 4.56 | NA | 250 | 4:1 | 29 | 10 | NA | NA | NA | NA | FTSC103-400 |
|
