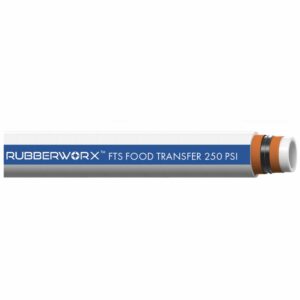

This heavy-duty food suction and discharge hose is designed for use in food service where oil resistance is required. White Nitrile tube meets FDA requirement for the transfer of oil and water based food products. Produced on chrome mandrels for smoothest tube finish in FDA applications.
Tube: White Nitrile/PVC Blend FDA
Reinforcement: TEXTILE
Helix: STEEL
Temperature: -25°F to 230°F
|
Part Number
|
ID (in)
|
OD (in)
|
Tube Thickness
|
Pressure (psi)
|
Burst Ration (safety factor)
|
Vacuum Rating
|
Bend Radius
|
Braid Coverage
|
Pitch (in)
|
Weight (oz/yd)
|
Length (ft)
| Reset filters | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FTS2103-050 | 0.5 | 0.85 | NA | 250 | 4:1 | 29 | 1 | NA | NA | NA | NA | FTS2103-050 |
| ||
| FTS2103-075 | 0.75 | 1.15 | NA | 250 | 4:1 | 29 | 2 | NA | NA | NA | NA | FTS2103-075 |
| ||
| FTS2103-100 | 1 | 1.45 | NA | 250 | 4:1 | 29 | 3 | NA | NA | NA | NA | FTS2103-100 |
| ||
| FTS2103-125 | 1.25 | 1.69 | NA | 250 | 4:1 | 29 | 4 | NA | NA | NA | NA | FTS2103-125 |
| ||
| FTS2103-150 | 1.5 | 1.98 | NA | 250 | 4:1 | 29 | 4 | NA | NA | NA | NA | FTS2103-150 |
| ||
| FTS2103-200 | 2 | 2.48 | NA | 250 | 4:1 | 29 | 5 | NA | NA | NA | NA | FTS2103-200 |
| ||
| FTS2103-250 | 2.5 | 3.02 | NA | 250 | 4:1 | 29 | 6 | NA | NA | NA | NA | FTS2103-250 |
| ||
| FTS2103-300 | 3 | 3.54 | NA | 250 | 4:1 | 29 | 7 | NA | NA | NA | NA | FTS2103-300 |
| ||
| FTS2103-400 | 4 | 4.56 | NA | 250 | 4:1 | 29 | 10 | NA | NA | NA | NA | FTS2103-400 |
| ||
| FTS2103-500 | 5 | 5.72 | NA | 250 | 4:1 | 29 | 12 | NA | NA | NA | NA | FTS2103-500 |
|
