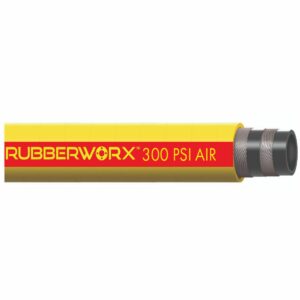

This heavy duty textile reinforced air hose with a pin pricked cover is specifically designed for use in compressed air service in industrial, construction, drilling and mining applications. The ozone and abrasion resistant cover holds up to the toughest applications.
Tube: Black NR/SBR
Reinforcement: TEXTILE
Temperature: -22°F to 180°F
|
Part Number
|
ID (in)
|
OD (in)
|
Tube Thickness
|
Pressure (psi)
|
Burst Ration (safety factor)
|
Vacuum Rating
|
Bend Radius
|
Braid Coverage
|
Pitch (in)
|
Weight (oz/yd)
|
Length (ft)
| Reset filters | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5005103-050 | 0.5 | 0.87 | NA | 300 | 4:1 | NA | NA | NA | NA | NA | NA | 5005103-050 |
| ||
| 5005103-063 | 0.625 | 0.98 | NA | 300 | 4:1 | NA | NA | NA | NA | NA | NA | 5005103-063 |
| ||
| 5005103-075 | 0.75 | 1.14 | NA | 300 | 4:1 | NA | NA | NA | NA | NA | NA | 5005103-075 |
| ||
| 5005103-100 | 1 | 1.42 | NA | 300 | 4:1 | NA | NA | NA | NA | NA | NA | 5005103-100 |
| ||
| 5005103-125 | 1.25 | 1.73 | NA | 300 | 4:1 | NA | NA | NA | NA | NA | NA | 5005103-125 |
| ||
| 5005103-150 | 1.5 | 2.01 | NA | 300 | 4:1 | NA | NA | NA | NA | NA | NA | 5005103-150 |
| ||
| 5005103-200 | 2 | 2.56 | NA | 300 | 4:1 | NA | NA | NA | NA | NA | NA | 5005103-200 |
| ||
| 5005103-250 | 2.5 | 3.15 | NA | 300 | 4:1 | NA | NA | NA | NA | NA | NA | 5005103-250 |
| ||
| 5005103-300 | 3 | 3.62 | NA | 300 | 4:1 | NA | NA | NA | NA | NA | NA | 5005103-300 |
| ||
| 5005103-400 | 4 | 4.65 | NA | 300 | 4:1 | NA | NA | NA | NA | NA | NA | 5005103-400 |
|
