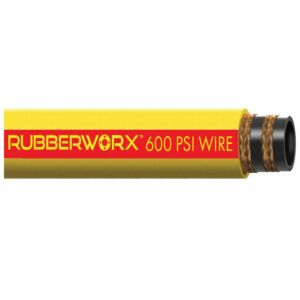

This heavy duty wire reinforced air hose with a pin pricked cover is specifically designed for use in compressed air service in industrial, construction, drilling and mining applications. The ozone and abrasion resistant cover holds up to the toughest applications.
Tube: Black NBR
Reinforcement: WIRE BRAID
Temperature: -22°F to 180°F
|
Part Number
|
ID (in)
|
OD (in)
|
Tube Thickness
|
Pressure (psi)
|
Burst Ration (safety factor)
|
Vacuum Rating
|
Bend Radius
|
Braid Coverage
|
Pitch (in)
|
Weight (oz/yd)
|
Length (ft)
| Reset filters | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5002103-050 | 0.5 | 0.8 | NA | 600 | 4:1 | NA | 4 | NA | NA | NA | NA | 5002103-050 |
| ||
| 5002103-075 | 0.75 | 1.1 | NA | 600 | 4:1 | NA | 6 | NA | NA | NA | NA | 5002103-075 |
| ||
| 5002103-100 | 1 | 1.45 | NA | 600 | 4:1 | NA | 8 | NA | NA | NA | NA | 5002103-100 |
| ||
| 5002103-125 | 1.25 | 1.8 | NA | 600 | 4:1 | NA | 10 | NA | NA | NA | NA | 5002103-125 |
| ||
| 5002103-150 | 1.5 | 2 | NA | 600 | 4:1 | NA | 12 | NA | NA | NA | NA | 5002103-150 |
| ||
| 5002103-200 | 2 | 2.5 | NA | 600 | 4:1 | NA | 15 | NA | NA | NA | NA | 5002103-200 |
| ||
| 5002103-300 | 3 | 3.7 | NA | 600 | 4:1 | NA | 35 | NA | NA | NA | NA | 5002103-300 |
| ||
| 5002103-400 | 4 | 5 | NA | 600 | 4:1 | NA | 45 | NA | NA | NA | NA | 5002103-400 |
| ||
| 5002103-600 | 6 | 6.95 | NA | 600 | 4:1 | NA | 75 | NA | NA | NA | NA | 5002103-600 |
|
