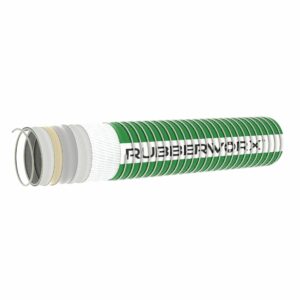

This heavy-duty suction and discharge composite hose is designed for use in water transfer applications. The flexible design is perfect for sewer bypass, dewatering or any other heavy duty water transfer pumping station. In applications where bend radius and weight are an issue with rubber, water trasfer composite is the perfect solution.
Tube: Natural polypropylene
Reinforcement: POLYFIBER
Inner Helix: Galvanized
Outer Helix: GALVANIZED
Temperature: -40°F to 212°F
|
Part Number
|
ID (in)
|
OD (in)
|
Tube Thickness
|
Pressure (psi)
|
Burst Ration (safety factor)
|
Vacuum Rating
|
Bend Radius
|
Braid Coverage
|
Pitch (in)
|
Weight (oz/yd)
|
Length (ft)
| Reset filters | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1C01205-1000 | 10 | 11.5 | NA | 200 | 3:1 | 29 | 40 | NA | NA | NA | NA | 1C01205-1000 |
| ||
| 1C01205-1200 | 12 | 13 | NA | 200 | 3:1 | 29 | 47 | NA | NA | NA | NA | 1C01205-1200 |
| ||
| 1C01205-200 | 2 | 2.24 | NA | 200 | 3:1 | 29 | 6 | NA | NA | NA | NA | 1C01205-200 |
| ||
| 1C01205-300 | 3 | 3.36 | NA | 200 | 3:1 | 29 | 8 | NA | NA | NA | NA | 1C01205-300 |
| ||
| 1C01205-400 | 4 | 4.4 | NA | 200 | 3:1 | 29 | 14.2 | NA | NA | NA | NA | 1C01205-400 |
| ||
| 1C01205-600 | 6 | 6.75 | NA | 200 | 3:1 | 29 | 22 | NA | NA | NA | NA | 1C01205-600 |
| ||
| 1C01205-800 | 8 | 9 | NA | 200 | 3:1 | 29 | 30 | NA | NA | NA | NA | 1C01205-800 |
|
