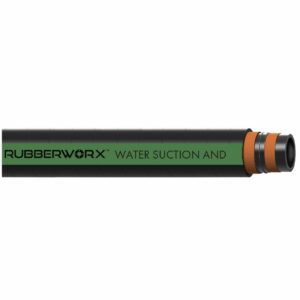

This heavy-duty water suction and discharge hose is designed for use in construction, dewatering, agricultural and industrial applications. Abrasion and ozone resistant EPDM cover for heavy duty industrial applications. EPDM tube designed to handle residual chemicals in water transfer applications
Tube: Black EPDM
Reinforcement: TEXTILE
Helix: STEEL
Temperature: -13°F to 180°F
|
Part Number
|
ID (in)
|
OD (in)
|
Tube Thickness
|
Pressure (psi)
|
Burst Ration (safety factor)
|
Vacuum Rating
|
Bend Radius
|
Braid Coverage
|
Pitch (in)
|
Weight (oz/yd)
|
Length (ft)
| Reset filters | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1004103-100 | 1 | 1.4 | NA | 150 | 3:1 | 28 | 4 | NA | NA | NA | NA | 1004103-100 |
| ||
| 1004103-1000 | 10 | 10.98 | NA | 150 | 3:1 | 28 | 50 | NA | NA | NA | NA | 1004103-1000 |
| ||
| 1004103-1200 | 12 | 12.9 | NA | 150 | 3:1 | 28 | 66 | NA | NA | NA | NA | 1004103-1200 |
| ||
| 1004103-125 | 1.25 | 1.69 | NA | 150 | 3:1 | 28 | 5 | NA | NA | NA | NA | 1004103-125 |
| ||
| 1004103-150 | 1.5 | 2 | NA | 150 | 3:1 | 28 | 6 | NA | NA | NA | NA | 1004103-150 |
| ||
| 1004103-200 | 2 | 2.5 | NA | 150 | 3:1 | 28 | 9 | NA | NA | NA | NA | 1004103-200 |
| ||
| 1004103-250 | 2.5 | 2.99 | NA | 150 | 3:1 | 28 | 10 | NA | NA | NA | NA | 1004103-250 |
| ||
| 1004103-300 | 3 | 3.57 | NA | 150 | 3:1 | 28 | 14 | NA | NA | NA | NA | 1004103-300 |
| ||
| 1004103-400 | 4 | 4.57 | NA | 150 | 3:1 | 28 | 19 | NA | NA | NA | NA | 1004103-400 |
| ||
| 1004103-500 | 5 | 5.59 | NA | 150 | 3:1 | 28 | 29 | NA | NA | NA | NA | 1004103-500 |
| ||
| 1004103-600 | 6 | 6.73 | NA | 150 | 3:1 | 28 | 32 | NA | NA | NA | NA | 1004103-600 |
| ||
| 1004103-800 | 8 | 8.78 | NA | 150 | 3:1 | 28 | 44 | NA | NA | NA | NA | 1004103-800 |
|
