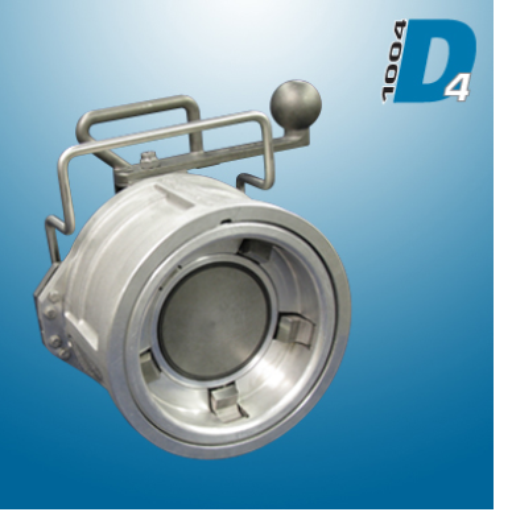

1004D4 API Bottom Loading Coupler

category image
Talk To An Expert

Next-generation API Bottom Loading Couples combines ease of maintenance with a unique spring-loaded sleeve design to deliver the ultimate coupler experience.









  • 5 Cam Design: Easy alignment, tight adaptor connections and side-force resistance during loading
  • Dual Interlocks: Ensure that opening cannot occur unless properly connected to an API Adaptor
  • Superior Sealing: Simple, reliable smart-seal design with dual high-performance O-rings
  • High-Performance Seals: Special Fluorocarbon Seal Compound for compatibility across most products, including gasoline, diesel, biodiesel and ethanol*
  • Maintenance: Pins and small threads eliminated to provide quick, easy access to critical components; nose seal replaced without requiring removal of coupler from rack; no special tools required; complete rebuild in minutes
  • Spring-Loaded Sleeve: Unique sleeve design automatically “jumps” onto API truck adaptor
  • Operation: Stainless-steel “ergo” handle design for easy, smooth operation

*-Other seals available upon request.

Technical

Design Parameters

Max Design Pressure 125 psi (g), 8.6 bar (g)
Max Allowable Working Pressure 75 psi (g), 5 bar (g)
Max Flow Rate 600GPM, 135 M3/H
Max Temperature See seal options
Weight 18.5 lbs (8.39 kg)
Pressure Drop (At Max Flow Rate) 2-5 psi (g), .24 bar (g)

Materials

Body, Sleeve, Poppet ASTM B26 Anodized (Aluminum A356-T6)
Cam ASTM A351 CF8M (316 SST)
Cylinder ASTM SB241(Aluminum 6061-T6)
Shaft ASTM A564 (13-8 Condition RH 950 SST)
Seals See Seal Options
Clevis Pin ASTM SA564 (17-4 PH SST, H900 Hardened)

Seal Options
