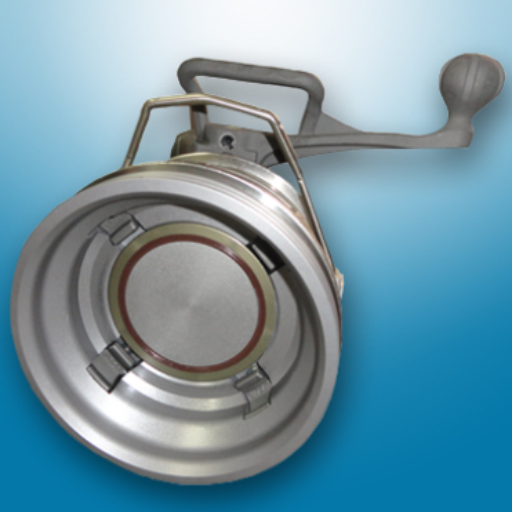

Liquip API800 Series Bottom Loading Coupler
Built with a stainless-steel latch-release handle and weighing only 8.5 kg (19 lbs.), the slimline Liquip API800 Series Bottom-Loading Coupler offers a robust design and ease of servicing for effortless bottom-loading operations. Liquip has considered each detail of the coupler with the user in mind to maximize the safety, performance, service life and quality of the coupler.
Categories
Built with a stainless-steel latch-release handle and weighing only 8.5 kg (19 lbs.), the slimline Liquip API800 Series Bottom-Loading Coupler offers a robust design and ease of servicing for effortless bottom-loading operations. Liquip has considered each detail of the coupler with the user in mind to maximize the safety, performance, service life and quality of the coupler.
- API bottom-loading coupler with automatic latching
- Fast in-field replacement of all seals on or off the arm
- Range of seals suits a range of applications
- Two operating-handle sizes to suit various applications
- Four true interlocking stainless-steel latches for secure coupling and maximum safety
- Stainless-steel collar and hard-anodized body for increased service life and durability
- Stainless-steel latch-release handle for long-term strength and durability
- High-quality components for increased operating life
- Increased site safety via minimal product leakage during disconnect
- Reduced risk of leakage through the sealing design
- Improved ergonomic operating handle and carry loop creates less physical strain on users
Technical
Specifications
| Technical Data |
|
| Test Pressure | 820 kPa (119psi) (8.2bar) |
| Max Working Pressure | 550 kPa (80psi) (5.5bar) |
| Design Pressure | 2500 kPa (363psi) (25bar) |
| Max Surge Pressure | 3400 kPa (493psi) (34bar) |
| Operating Temperature | -20°C to 80°C (-4°F to 176°F) -40°C to 60°C (-40°F to 140°F) |
| Design Standard | API RP 1004 8th EDITION 2003 – Bottom Loading and Vapor Recovery |
| Dismantling | Removal of one roll pin enables the shaft assembly and main poppet to be withdrawn |
| Mounting |
|
