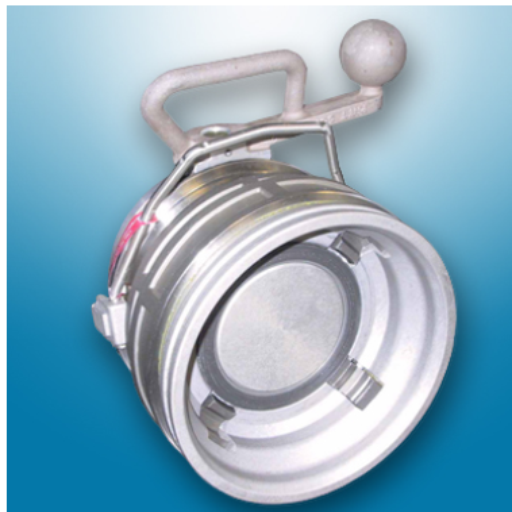

Liquip API700 Series Bottom Loading Coupler
The API700 Series of Bottom-Loading Couplers is the third generation of Liquip-manufactured API couplers. It provides an effortless automatic connection for the safe and environmentally friendly transfer of product from the loading rack to the tank truck.
Features & Benefits
- Stainless-steel outer collar
- Latching-mechanism greatly improves geometry
- Automatic-latching mechanism and one-touch disconnect ensures effortless operation
- Hard-anodized aluminum body for extended life
- Precision-machined latch spindles ensure superior latch alignment, resulting in fewer drips at disconnection
- Separate nose and inner-poppet seals prevent high pressure from extruding inner seal
- Ergonomic loop-and-ball handle eases operation and improves comfort
- Poppet nose seal is replaceable without removing coupler from service
- Coupler can be disassembled in 2-3 minutes for maintenance
- Viton® B70 seals standard with Viton® GFLT seals in stock
- Additional seal materials available upon request
Technical
Specifications
| Technical Data |
|
| Test Pressure | 1500kPa (218psi) (15bar) uncoupled |
| Operating Pressure | 1000kPa (145psi) (10bar) |
| Max Coupling / Uncoupling Pressure | 550kPa (80psi) (5.5bar) |
| Max Coupled Pressure | 2000kPa (290psi) (20bar) |
| Operating Temperature | -20°C to 80°C (-4°F to 176°F) for Viton® B70 seals -40°C to 60°C (-40°F to 140°F) for Viton® GFLT seals |
| Associated Equipment | Liquip ‘Velvet Touch’ Loading Arms |
| Adjustment | None Required |
| Mounting |
|
| Weight | 9.2kg (20.3lb) |
