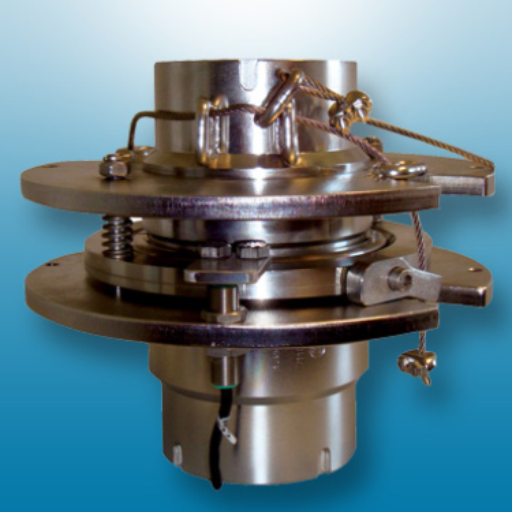

NTS-SZ (Cable-Release) Series Safety Breakaway Coupling
Protects your equipment, piping and personnel in the event of an unintended pull-away. A consideration whenever you are making a tight connection to a truck or railcar.
SAFER. Protects loading rack facilities, hoses and personnel by preventing damage and spills during a pull-away incident.
CLEANER. High value fluid and gas transfer is protected by two spring energized valves for maximum protection with a minimum of fluid loss.
FASTER. Immediate separation occurs at individually determined straight or angular pulling force. This non-destructive separation allows easy reassembly, with no shear pins, tools or spare parts.
Break Force does not change with system pressure or angle of pull!
Protects your system components by minimizing the amount of stress placed on your system. Pulling force is through cable NOT your hoses/piping.
Protects your equipment, piping and personnel in the event of an unintended pull-away. A consideration whenever you are making a tight connection to a truck or railcar.
SAFER. Protects loading rack facilities, hoses and personnel by preventing damage and spills during a pull-away incident.
CLEANER. High value fluid and gas transfer is protected by two spring energized valves for maximum protection with a minimum of fluid loss.
FASTER. Immediate separation occurs at individually determined straight or angular pulling force. This non-destructive separation allows easy reassembly, with no shear pins, tools or spare parts.
- Break Force does not change with system pressure or angle of pull!
- Protects your system components by minimizing the amount of stress placed on your system. Pulling force is through cable NOT your hoses/piping.
Specifications
| Connections | FNPT or Flange (150/300#) |
| Sizes | 1″, 2″, 3″, 4″, 6″ (Sizes up to 12″ Available Upon Request) |
| Max. Pressure | 360 PSI (Alu 232 PSI) |
| Materials | 316 Stainless Steel (Anodized Aluminum in 4″ size only) |
| Seals | Fluorocarbon, EPDM, Chemraz® |
