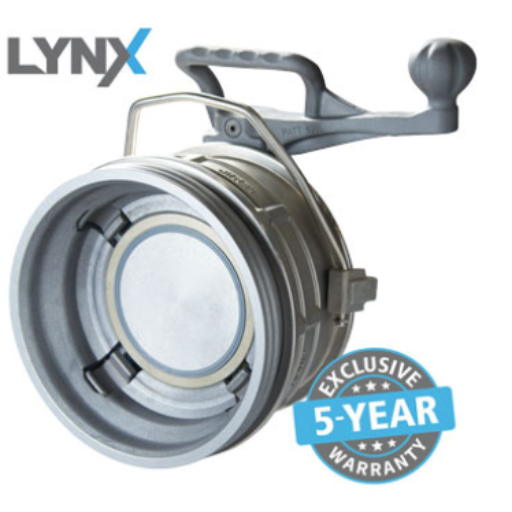

LYNX Series Bottom-Loading Coupler
LYNX Series Coupler – The Best in Bottom Loading
LYNX is optimized to bring your liquid terminals and tank trucks the very best in dry-break API technology. From its ultra-durable stainless-steel collar to its ability to protect your loading-arm connection even when facing surge pressures up to 500 psi, you can count on LYNX for years of service and to help minimize fluid loss.
Fast Disassembly, Less Downtime
If you have 30 seconds and a screwdriver, you can disassemble LYNX. Thanks to a U-pin design, loading-arm operators can perform coupler maintenance without special tools and do it quickly.
Features & Benefits
5-Year Warranty
Fast in-field replacement of the main seals, on or off the arm
Quick and easy disassembly of entire coupler through U-pin design
Automatic latching
U-pin is secured when the TTMA flange is fastened to prevent the pin from coming out during service
A variety of seals available to suit a range of applications
Two operating handle sizes to suit customer preference
Four “true-interlocking” stainless-steel latches ensure secure coupling and maximum safety
High-quality components including a stainless-steel collar and hard anodized aluminum body for increased service durability and life
Nominal product leakage during disconnect increases site safety
Low risk of leakage because of a proven seal design
Ergonomic operating handle and carry loop results in less physical strain on users
Technical
Specifications
| Handle Length | Short 5.9″ (150mm) or Long 7.8″ (200mm) |
| Seals | Viton B, Viton GFLT, Nitrile/Buna, Fluorosilicone, FFKM, Ultra Low-Temp (FKM) |
| Max Working Pressure | 80 psi (5.5 bar) (550 kPa) |
| Product Test Pressure | 119 psi (8.2 bar) (820 kPa) |
| Design Pressure | 363 psi (25 bar) (2500 kPa) |
| Max Surge Pressure | 493 psi (34 bar) (3400 kPa) |
| Operating Temperature | Viton B70: 0°F to 200°F (-15°C to +90°C); Viton GFLT: -20°F to +200°F (-28°C to +90°C); Nitrile/Buna: -40°F to 212°F (-40°C to 100°C); Fluorosilicone: -49°F to 350°F (-45°C to 177°C); FFKM: 23°F to 140°F (-5°C to 60°C); FKM (Ultra Low-Temp): -40°F to 200°F (-40°C to 90°C) |
| Design Standard | API RP 1004 8th EDITION 2003 – Bottom Loading and Vapour Recovery; AS5602-2009 |
| Dismantling | Removal of one U-pin enables the shaft assembly and main poppet to be withdrawn |
| Mounting |
|
| Adjustment or Service | Refer to Maintenance Instructions document |
| Weight | 19 lbs. (8.6 kg.) |
