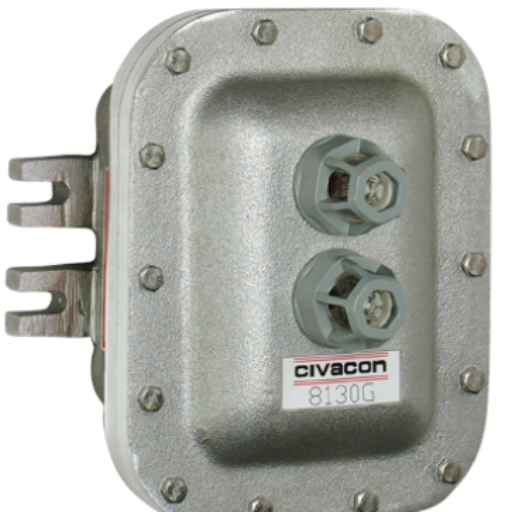

Optic Rack Monitor Model 8130 for Bottom & Top Loading
Well-suited for bottom-loading applications with vehicles outfitted with Optic sensors, and also suited for overfill protection while top-loading railcars or tank trucks. Generates a unique, pulsed — and intrinsically safe — electrical signal that is transmitted to the sensors via a coiled cord and optic-format plug. When sensors on the transport are dry a signal is returned to the monitor. If the signal meets pre-determined characteristics the monitor goes to a “permissive” state, which changes the status light on the front of the 8100 Series Optic Rack Monitor from red (“non-permissive”) to green (“permissive”).
If the sensor becomes wet, the relay is opened and the status light changes from green to red (non-permissive), shutting down the loading process. The Model 8130 Optic Monitor with Ground Verification includes displayed status of the optic sensor (“permissive” or “non-permissive”) and mode of operation. If the bypass mode is activated the green and red status lights will flash alternately. If the monitor does not receive a proper ground verification signal, the red status light will flash repeatedly, shutting down the loading process. Ground verification cannot be bypassed.
Features/Benefits
Order Guide
Monitors
8130-8130 Optic rack monitor with indicator lamps, integrated ground verification
8150-8150 Optic rack monitor with indicator lamps, ground verification and “Smart Remote” tamper-resistant keyed bypass switch
Optic Plug & Cords
7120-7120, Optic plug with 30’ 10-conductor coiled cord and 7-pin breakaway plug
7100SR-7100, Optic plug with 30’ 6-conductor blue coiled cord for Scully replacement
7120SR-7120, Optic plug with 30’ 6-conductor blue coiled cord for Scully replacement and 7-pin breakaway plug
7190S-0020, 7100-7100 Optic plug with 30’ coiled cord and 7500-7500 junction box
7120-7120 Optic Breakaway Plug with 30’ coiled cord and 7540-7540 breakaway junction box
Grounding Cable & Clamps
7720-7720, Ground Verification Clamp with 40’ straight cord
7720-COIL, Ground Verification Clamp with 30’ coiled cord
7620-7620, Ground Verification Plug & Cord Set for dual ball application with 30’ straight cord
7620-COIL, Ground Verification Plug & Cord Set for dual ball application with 30’ coiled cord
Junction Boxes
7500-7500, Junction Box for Optic, Thermistor and Ground verification Plug & Cord Sets (Non-Breakaway)
7540-7540, Junction Box with 7-pin socket for Cane Probes or Breakaway Optic Plug & Cord Sets
7540-8X30, Junction Box with 7-pin socket for Breakaway Optic Plug & Cord Sets, Includes bypass connection for 8130 Optic Rack Monitor (Does NOT include BCU-2)
Options
8150-120, 8130-120 Optic Rack Monitor with Ground Verification, Red/Green Indicator Lights, Includes 7560-7560 Junction Box and one BCU-2 Bypass Control Unit
7150-7150, Optic Plug Hanger
7560-7560, Junction Box with bypass connection for 8150 Optic Rack Monitor (Does not include BCU-2 Bypass Control Unit)
BCU-2, Bypass Control Unit for 8150 Optic Rack Monitor (7560-7560 or 7540-8X30 Junction Box required)
1386-1386, Opti/Therm Rack Monitor Tester
