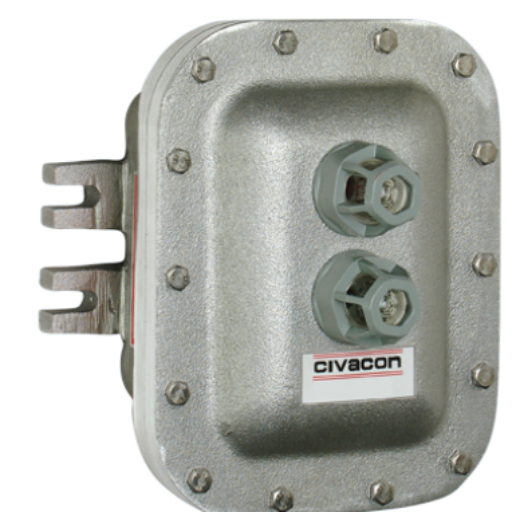

Ground Verification Monitor Model 8030 for Grounding Only Applications
Civacon’s Ground Verification Monitor (Model 8030) visually confirms a ground connection between the transport and the loading terminal, giving you peace of mind and more importantly, safety. The Civacon model 8030, Ground Verification Monitor uses technology that is compatible with transport ground systems used today. The monitor has a 5 amperage, 240 volt relay output for control of terminal automation systems (T.A.S.) or pump control devices when used as a stand-alone system. The monitor is equipped with green and red lamps for visual status indication. When a proper ground signal is present the green lamp will light and a permissive signal will allow the load rack to be operational. If the ground is lost, the red lamp will come on indicating a non-permissive state and shut down the loading operation.
Features/Benefits
Order Guide
Monitors
8030-120- Ground Monitor with Red/Green Status Lights, 120 Volt
8030-240- Ground Monitor with Red/Green Status Lights, 240 Volt
Grounding Cable & Clamps
7720-7720, Ground Verification Clamp with 40’ straight cord
7720-COIL, Ground Verification Clamp with 30’ coiled cord
7620-7620, Ground Verification Plug & Cord Set for dual ball application with 30’ straight cord
7620-COIL, Ground Verification Plug & Cord Set for dual ball application with 30’ coiled cord
Junction Boxes
7500-7500, Junction Box for Optic, Thermistor and Ground verification Plug & Cord Sets (Non-Breakaway)
Options
7560-7560, Junction Box with bypass connection for 8150 Optic Rack Monitor (Does not include BCU-2 Bypass Control Unit)
BCU-2, Bypass Control Unit for 8150 Optic Rack Monitor (7560-7560 or 7540-8X30 Junction Box required)
