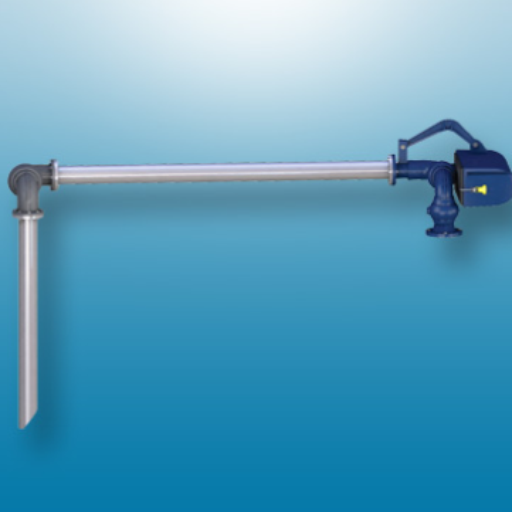

Fixed Reach Style Top Loading Arm
This simple arm incorporates only three swivel planes of rotation and is designed for use in top-loading installations where the vehicle is located at a fixed distance from the riser pipe. The two swivel planes at the inlet permit both up-and-down and side-to-side movement of the assembly, and the third swivel plane allows the drop pipe to remain vertical.
Valves can be located inboard or outboard to facilitate loading. With a valve located outboard, dripping of viscous products after loading can be minimized.
This single arm loader is adaptable to tight fill or closed loading when equipped with additional swivel planes of rotation and/or drop hose, along with required outboard coupling, union or fitting.
Features/Benefits
Library
3” Top Unloading Arm
DuctileIron/Aluminum/Fluorocarbon Construction
120” Reach x 90” Suction Tube
4″ Top Unloading Arm
DuctileIron/Aluminum/Fluorocarbon Construction
120″ Reach x 90″ Suction Tube
3” Top Loading Arm
Carbon Steel/Fluorocarbon Construction
120” reach x 48” drop
3” Top Loading Arm
Carbon Steel/Fluorocarbon Construction
108” reach x 48” drop
3” Top Loading Arm
Carbon Steel/Fluorocarbon Construction
98” reach x 72” drop
3” Top Loading Arm
Stainless Steel/PTFE Construction
120” reach x 48” drop
3” Top Loading Arm
Stainless Steel/FDA Nitrile Construction
108” reach x 60” drop
4” Top Loading Arm
Carbon Steel/Fluorocarbon Construction
120” reach x 48” drop
4” Top Loading Arm
Stainless Steel/PTFE Construction
94” reach x 60” drop
