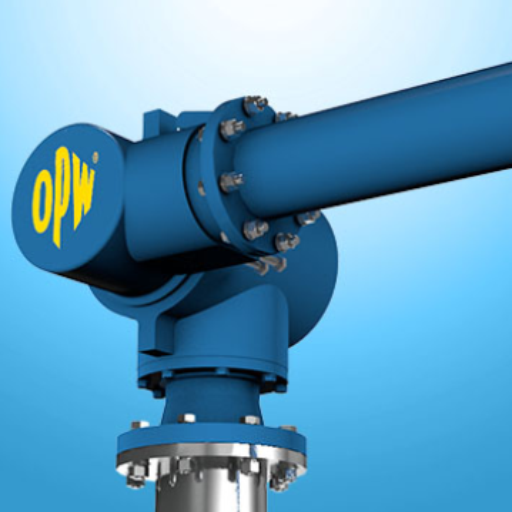

Compact Torsion Swivel (CTS) Hose Loader
OPW Compact Torsion Spring Swivel (CTS) Bottom Loading Arms are ideal to replace loading arms in situations where tight clearances are required. The CTS Loader features a fully integrated internal torsion spring for a streamlined profile. Ideal for replacing existing FMC TL Loaders or any application where space is a premium. The CTS has been engineered to be easier to adjust and maintain.
Features/Benefits
Technical
Specifications
| Materials | Carbon Steel / Aluminum |
|---|---|
| Seals | Lo Temp Flurocarbon |
| Working Pressure | 125 psi (862 kPa) |
| Test Pressure | 188 psi (1296 kPa) |
| Operating Temp | -20° to 140° |
| Up/Down Angular Movement | +45° to -15° (from horizontal) |
| Typical Horizontal Spacing | 11″(279mm) |
| Typical Vertical Spacing | 12″(305mm) |
| Typical Reach (radius) | 50″ to 70″ (1270mm to 1778mm) |
| Typical No. of arms per bay | up to 5 |
