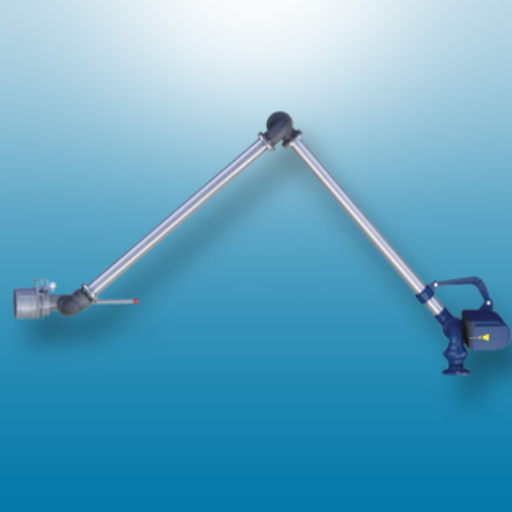

The “A” Frame Loader is a popular loading-arm configurations due to its flexibility, long reach and convenience of use. Commonly used for tank-truck bottom loading, “A” Frame arms can also be used in top-loading/unloading installations. Inlet flange and seamless piping are suitable for handling liquefied petroleum gases, including propane and butane.

2”–4” sizes available

Carbon-Steel, Stainless-Steel and Aluminum options

Adjusts for elevation/tilting during loading/unloading

Stores in upright, near-vertical position

Compact storage envelope allows closer installation proximity

Low riser mounting heights

Equipped with dry-disconnect coupling, union or other tight-fill inlet

Choice of flanged, threaded or all-welded construction

LPG service arms (LPG-32-F) feature all-welded construction

Fully customizable

Features/Benefits

Library

All OPW Loading Arms can be customized to fit your specific application requirements. We do offer a series of Standard/ optimized solutions that are commonly specified. These optimized selections can be expedited to meet faster delivery requirements.3” Bottom Loading Arm
Ductile Iron/Carbon Steel/ Aluminum Construction
96” Reach
Same as above in 4”
